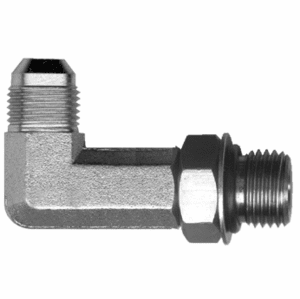

Steel O-Ring Boss Adapters (ORB): Male JIC to 90° Adjustable ORB Elbow (Long)
| Male JIC to 90° Adjustable ORB Elbow (Long) (Steel) SAE # 071520 |
||||||
| Part Number |
Male JIC |
Male JIC Thread Size |
Male O-Ring |
Male O-Ring Thread Size |
Sale Price |
|
| 853L-4-4 | 1/4 | 7/16-20 | 1/4 | 7/16-20 | 3.01 | |
| 853L-4-6 | 1/4 | 7/16-20 | 1/4 | 7/16-20 | 5.74 | |
| 853L-6-6 | 3/8 | 9/16-18 | 3/8 | 9/16-18 | 2.64 | |
| 853L-6-8 | 3/8 | 9/16-18 | 1/2 | 3/4-16 | 4.40 | |
| 853L-8-6 | 1/2 | 3/4-16 | 3/8 | 9/16-18 | 8.14 | |
| 853L-8-8 | 1/2 | 3/4-16 | 1/2 | 3/4-16 | 3.34 | |
| 853L-8-10 | 1/2 | 3/4-16 | 5/8 | 7/8-14 | 8.33 | |
| 853L-10-8 | 5/8 | 7/8-14 | 1/2 | 3/4-16 | 8.84 | |
| 853L-10-10 | 5/8 | 7/8-14 | 5/8 | 7/8-14 | 7.86 | |
| 853L-10-12 | 5/8 | 7/8-14 | 3/4 | 1-1/16-12 | 18.52 | |
| 853L-12-10 | 3/4 | 1-1/16-12 | 5/8 | 7/8-14 | 14.82 | |
| 853L-12-12 | 3/4 | 1-1/16-12 | 3/4 | 1-1/16-12 | 8.82 | |
| 853L-16-12 | 1 | 1-5/16-12 | 3/4 | 1-1/16-12 | 25.67 | |
| 853L-16-16 | 1 | 1-5/16-12 | 1 | 1-5/16-12 | 19.22 | |
| 853L-20-20 | 1-1/4 | 1-5/8-12 | 1-1/4 | 1-1/8-12 | 30.80 | |
Use the pull-down menu to select the part number of the size you need.
