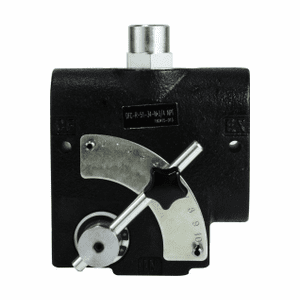

Variable Flow Control
AFC model is a full range pressure compensating variable flow control. It is designed so that the orfice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports. An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief. Relief are preset at 1,500 PSI and field adjustable from 750 to 3,000 PSI.
Materials: Cast Iron Body, Heat Treated Compensator Spool, Stainless Steel Rotary Spool, Buna N O-Rings (Standard)
Use the pull-down menu to select the part number of the size you need.
Materials: Cast Iron Body, Heat Treated Compensator Spool, Stainless Steel Rotary Spool, Buna N O-Rings (Standard)
| Variable Flow Control - Adjustable | |||||
| Part Number |
Size | Flow | Sale Price |
||
| AFC-600 | 3/8” NPT | 0-8 GPM | 157.26 | ||
| AFC-800 | 1/2” NPT | 0-16 GPM | 157.26 | ||
| AFC-1200 | 3/4” NPT | 0-30 GPM | 157.26 | ||
Use the pull-down menu to select the part number of the size you need.
