Code 61 Hydraulic Flange Adapters:

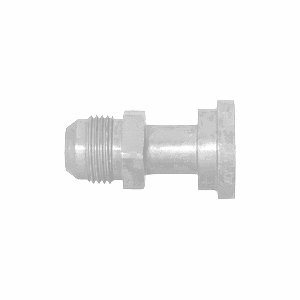

Straight Flange Adapter (Male JIC To SAE Flange)
| Straight Flange Adapter (Male JIC 37° To SAE Flange) (3000 PSI) Code 61 |
|||||
| Part Number |
JIC Tube Size |
JIC Thread Size |
Flange Size |
Sale Price |
|
| 503-8-8 | 1/2 | 3/4-16 | 1/2 | 15.80 | |
| 503-8-12 | 1/2 | 3/4-16 | 3/4 | 16.48 | |
| 503-10-10 | 5/8 | 7/8-14 | Komatsu | 18.58 | |
| 503-12-10 | 3/4 | 1-1/16-12 | Komatsu | 19.40 | |
| 503-12-12 | 3/4 | 1-1/16-12 | 3/4 | 11.60 | |
| 503-12-16 | 3/4 | 1-1/16-12 | 1 | 13.70 | |
| 503-12-20 | 3/4 | 1-1/16-12 | 1-1/4 | 34.42 | |
| 503-12-24 | 3/4 | 1-1/16-12 | 1-1/2 | 39.34 | |
| 503-16-12 | 1 | 1-5/16-12 | 3/4 | 19.14 | |
| 503-16-16 | 1 | 1-5/16-12 | 1 | 14.16 | |
| 503-16-20 | 1 | 1-5/16-12 | 1-1/4 | 23.10 | |
| 503-16-24 | 1 | 1-5/16-12 | 1-1/2 | 22.38 | |
| 503-20-12 | 1-1/4 | 1-5/8-12 | 3/4 | 37.20 | |
| 503-20-16 | 1-1/4 | 1-5/8-12 | 1 | 28.66 | |
| 503-20-20 | 1-1/4 | 1-5/8-12 | 1-1/4 | 28.30 | |
| 503-20-24 | 1-1/4 | 1-5/8-12 | 1-1/2 | 42.58 | |
| 503-20-32 | 1-1/4 | 1-5/8-12 | 2 | 46.68 | |
| 503-24-16 | 1-1/2 | 1-7/8-12 | 1 | 42.08 | |
| 503-24-20 | 1-1/2 | 1-7/8-12 | 1-1/4 | 39.06 | |
| 503-24-24 | 1-1/2 | 1-7/8-12 | 1-1/2 | 30.48 | |
| 503-24-32 | 1-1/2 | 1-7/8-12 | 2 | 46.72 | |
| 503-32-24 | 2 | 2-1/2-12 | 1-1/2 | 46.72 | |
| 503-32-32 | 2 | 2-1/2-12 | 2 | 59.54 | |
Use the pull-down menu to select the part number of the size you need.
