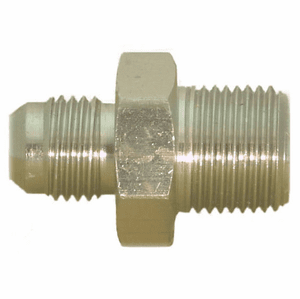

International Thread Fittings: Male 37º JIC To Male BSPT
| Male 37º JIC To Male British Standard Pipe Thread (BSPT) (Steel) | |||||
| Part Number |
Male JIC |
Male JIC Thread Size |
Male BSPT |
Sale Price |
|
| 816BSPT-2-2 | 1/8 | 5/16-24 | 1/8 | 8.53 | |
| 816BSPT-4-2 | 1/4 | 7/16-20 | 1/8 | 2.23 | |
| 816BSPT-4-4 | 1/4 | 7/16-20 | 1/4 | 2.08 | |
| 816BSPT-4-6 | 1/4 | 7/16-20 | 3/8 | 3.63 | |
| 816BSPT-5-2 | 5/16 | 1/2-20 | 1/8 | 3.63 | |
| 816BSPT-5-4 | 5/16 | 1/2-20 | 1/4 | 3.88 | |
| 816BSPT-5-6 | 5/16 | 1/2-20 | 3/8 | 13.05 | |
| 816BSPT-6-2 | 3/8 | 9/16-18 | 1/8 | 6.70 | |
| 816BSPT-6-4 | 3/8 | 9/16-18 | 1/4 | 3.15 | |
| 816BSPT-6-6 | 3/8 | 9/16-18 | 3/8 | 4.85 | |
| 816BSPT-6-8 | 3/8 | 9/16-18 | 1/2 | 5.75 | |
| 816BSPT-8-4 | 1/2 | 3/4-16 | 1/4 | 5.95 | |
| 816BSPT-8-6 | 1/2 | 3/4-16 | 3/8 | 4.03 | |
| 816BSPT-8-8 | 1/2 | 3/4-16 | 1/2 | 5.38 | |
| 816BSPT-8-12 | 1/2 | 3/4-16 | 3/4 | 15.48 | |
| 816BSPT-8-16 | 1/2 | 3/4-16 | 1 | 27.53 | |
| 816BSPT-10-6 | 5/8 | 7/8-14 | 3/8 | 11.48 | |
| 816BSPT-10-8 | 5/8 | 7/8-14 | 1/2 | 6.45 | |
| 816BSPT-10-12 | 5/8 | 7/8-14 | 3/4 | 10.73 | |
| 816BSPT-12-8 | 3/4 | 1-1/16-12 | 1/2 | 10.73 | |
| 816BSPT-12-12 | 3/4 | 1-1/16-12 | 3/4 | 7.78 | |
| 816BSPT-12-16 | 3/4 | 1-1/16-12 | 1 | 14.15 | |
| 816BSPT-14-12 | 1 | 1 3/16-12 | 3/4 | 29.93 | |
| 816BSPT-16-8 | 1 | 1-5/16-12 | 1/2 | 22.65 | |
| 816BSPT-16-12 | 1 | 1-5/16-12 | 3/4 | 18.83 | |
| 816BSPT-16-16 | 1 | 1-5/16-12 | 1 | 13.43 | |
| 816BSPT-16-20 | 1 | 1-5/16-12 | 1-1/4 | 57.78 | |
| 816BSPT-20-16 | 1-1/4 | 1-5/8-12 | 1 | 40.75 | |
| 816BSPT-20-20 | 1-1/4 | 1-5/8-12 | 1-1/4 | 32.73 | |
| 816BSPT-24-20 | 1-1/2 | 1-7/8-12 | 1-1/4 | 135.90 | |
| 816BSPT-24-24 | 1-1/2 | 1-7/8-12 | 1-1/2 | 67.48 | |
| 816BSPT-32-32 | 2 | 2-1/2-12 | 2 | 159.13 | |
Use the pull-down menu to select the part number of the size you need.
