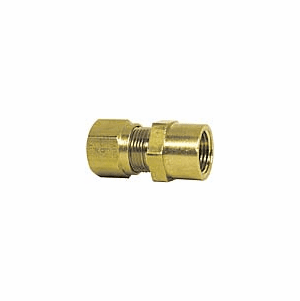

Brass Air Brake Fittings for Nylon Tubing: Female Connector
For use with SAE J844 nylon tubing in air brake systems or in cab air controls. Meets DOT FMVSS571.106 air brake specifications and SAE J246 and J1131 standards.
Use the pull-down menu to select the part number of the size you need.
Female Connector | ||||
Part Number |
Tube Size |
Pipe Thread |
Sale Price |
|
66NABx4x2 | 1/4 | 1/8 | 4.17 | |
66NABx4x4 | 1/4 | 1/4 | 4.97 | |
66NABx6x2 | 3/8 | 1/8 | 4.80 | |
66NABx6x4 | 3/8 | 1/4 | 6.03 | |
66NABx6x6 | 3/8 | 3/8 | 6.80 | |
66NABx8x6 | 1/2 | 3/8 | 9.33 | |
66NABx8x8 | 1/2 | 1/2 | 13.95 | |
66NABx10x6 | 5/8 | 3/8 | 14.93 | |
66NABx10x8 | 5/8 | 1/2 | 17.62 | |
66NABx12x8 | 3/4 | 1/2 | 27.43 |
Use the pull-down menu to select the part number of the size you need.
